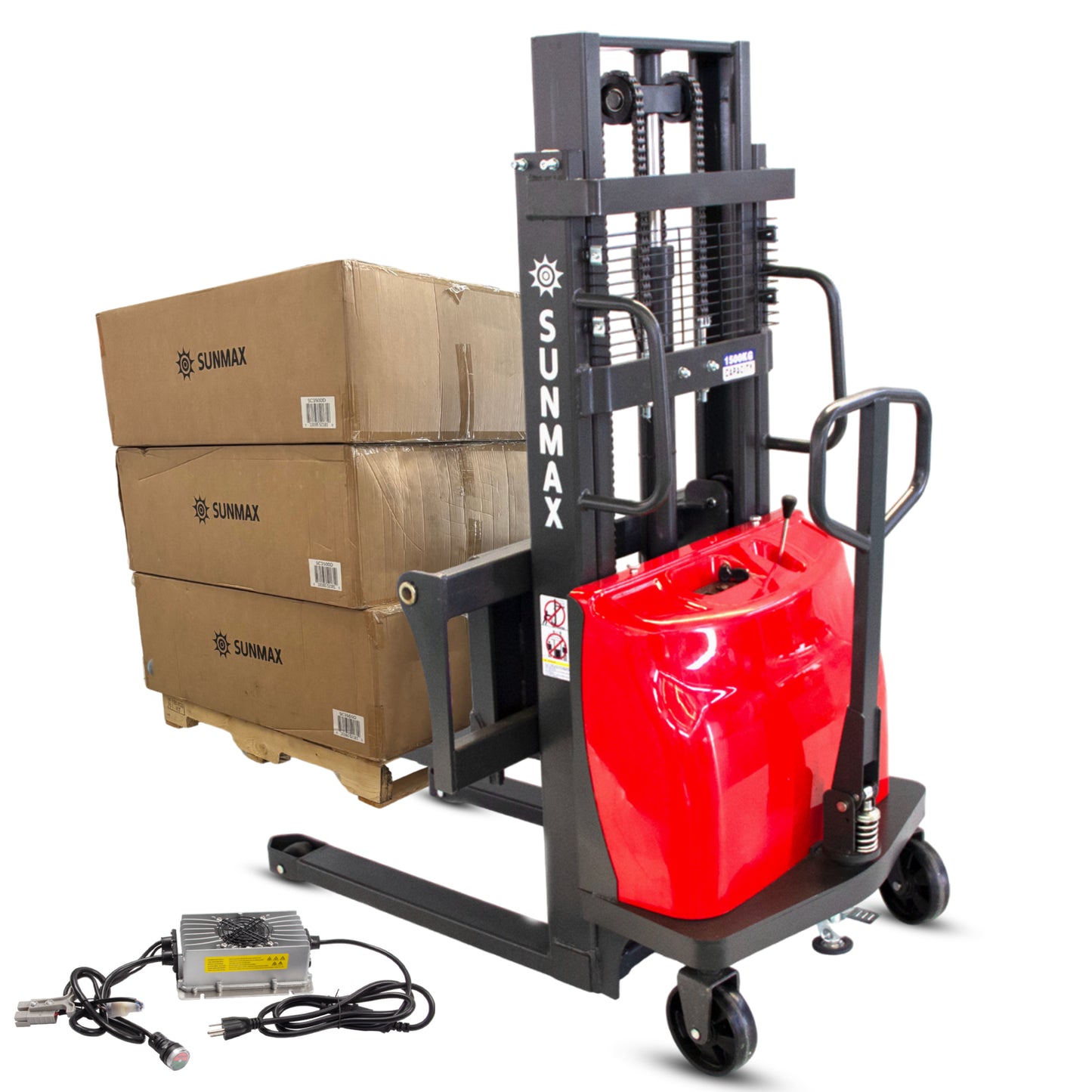

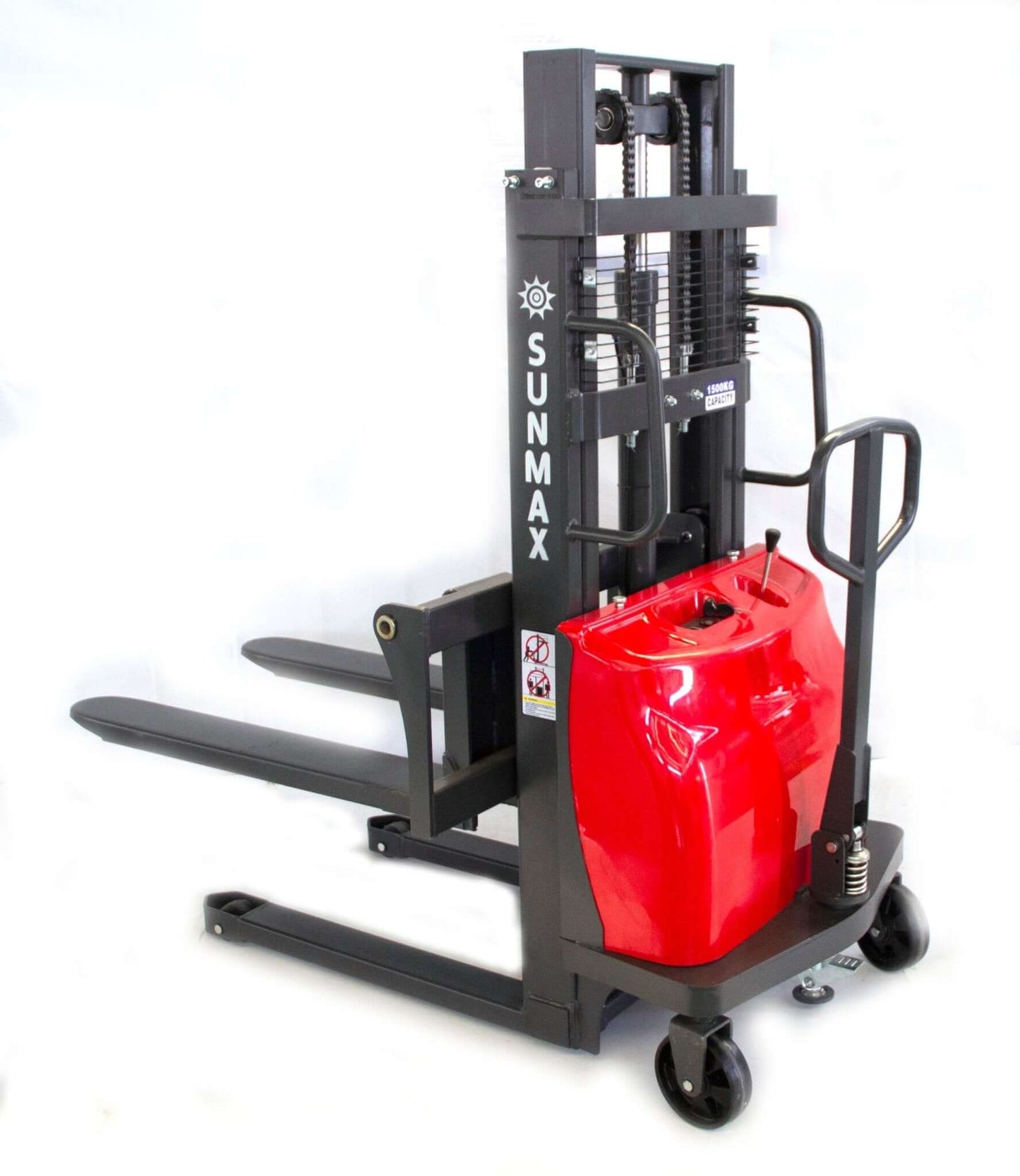

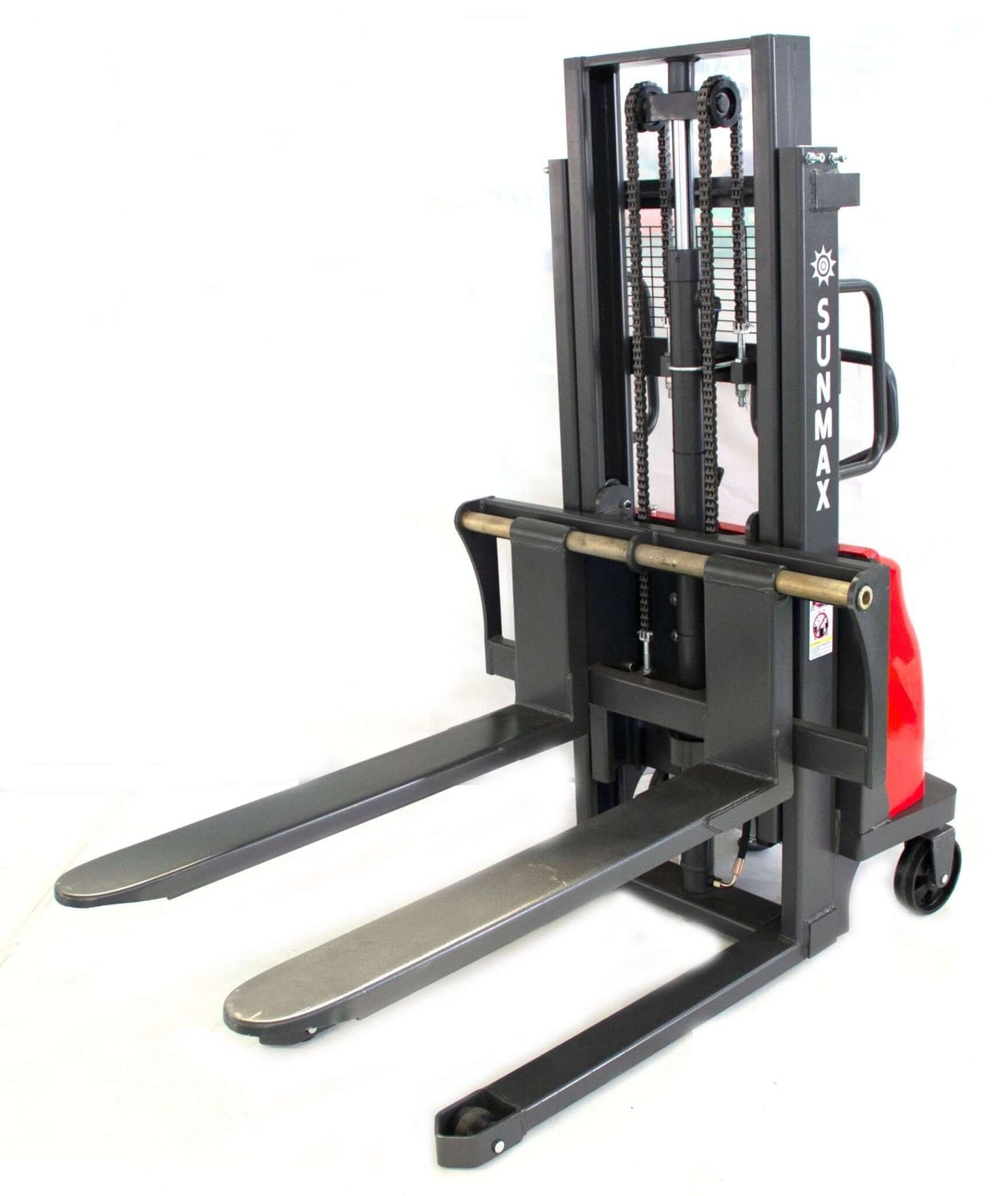

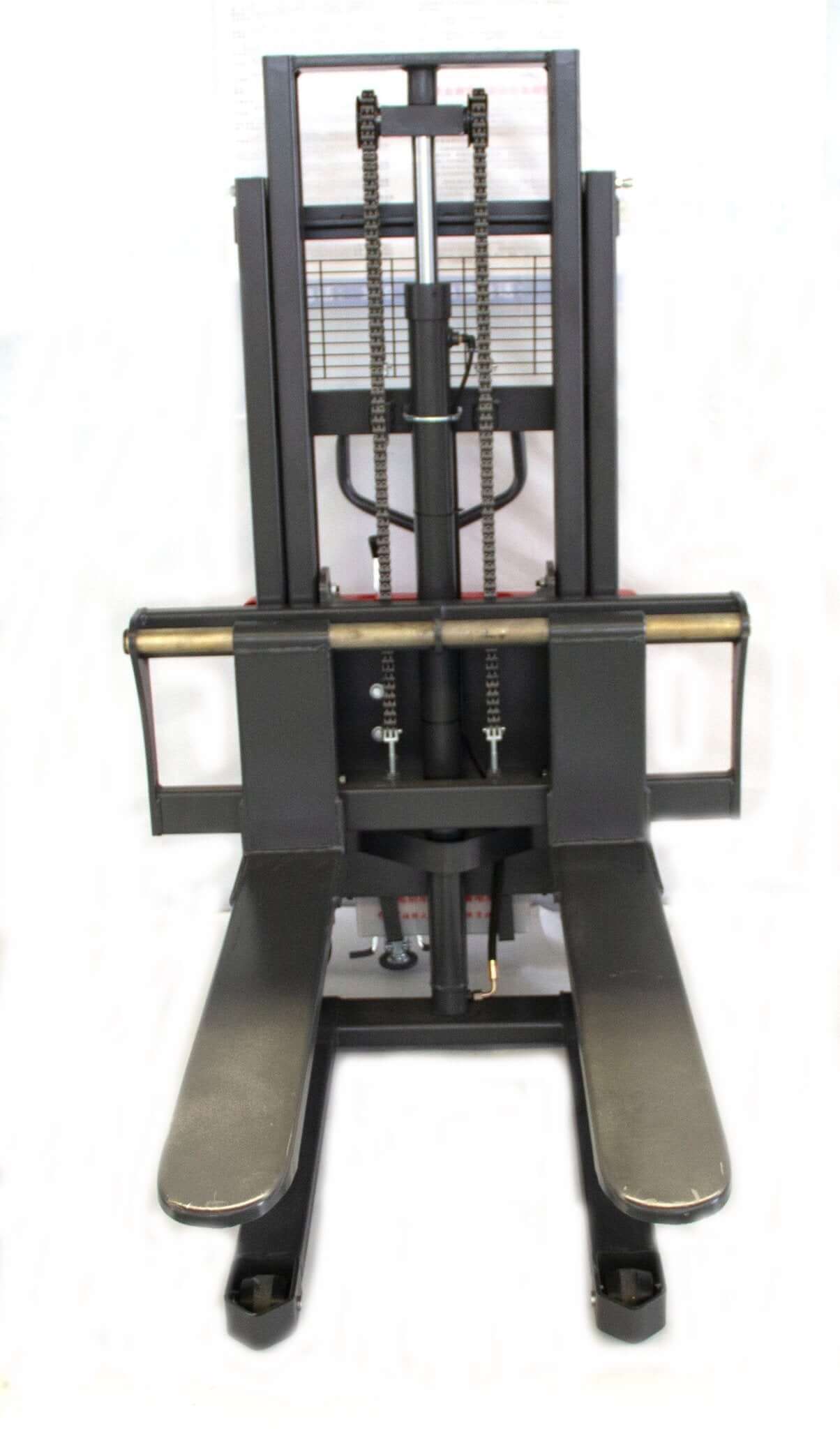

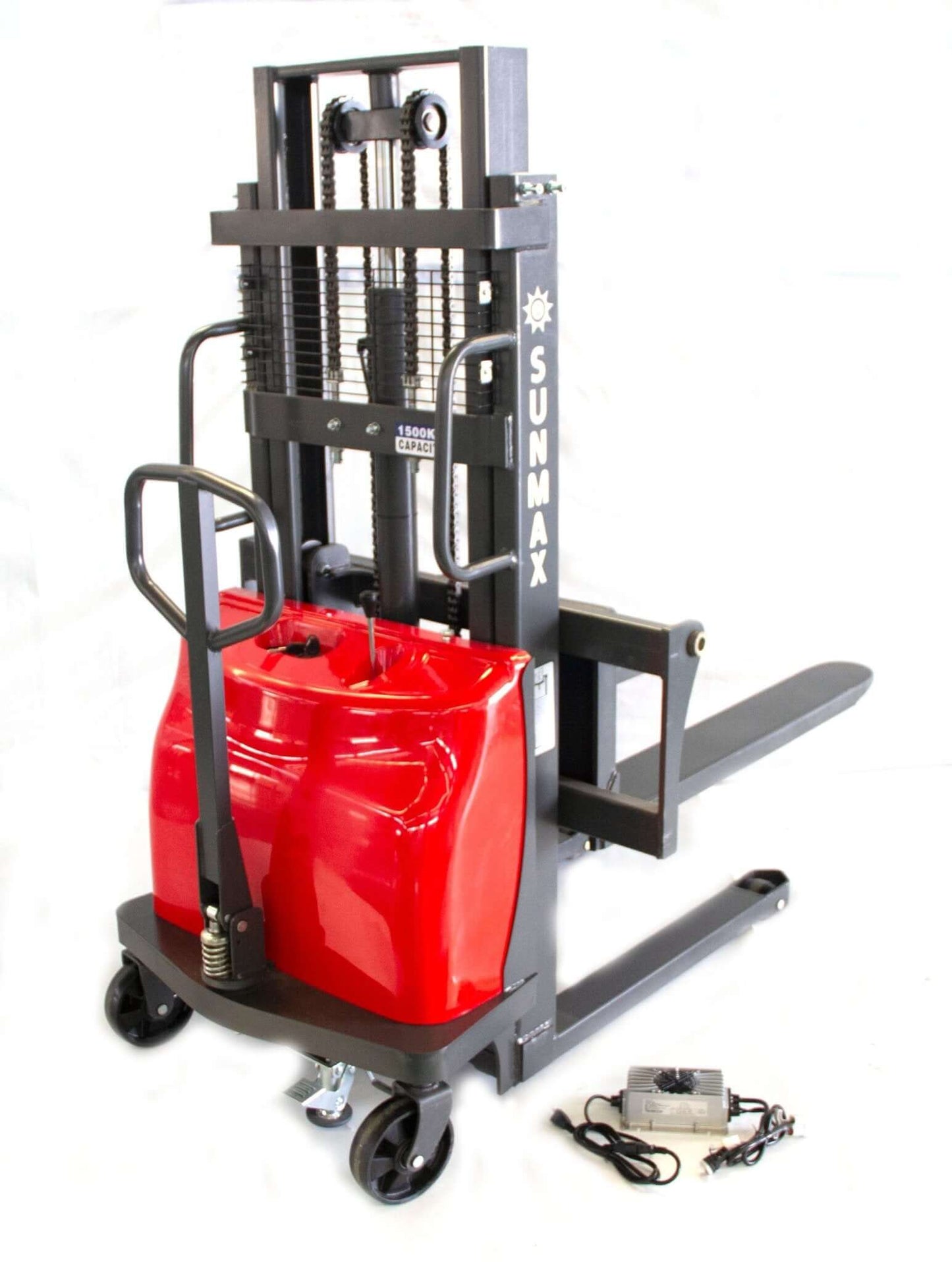

Electric Pallet Stacker, 3300 lbs Capacity, 78" Lifting Height
Electric Pallet Stacker, 3300 lbs Capacity, 78" Lifting Height
Couldn't load pickup availability
- Fast and Free Freight Shipping to 48 lower states
- Deliver in 3-8 business days
- 2 year warranty
Introducing the SUNMAX Electric Pallet Stacker, the ideal solution for efficient and safe material handling in various industrial settings.
Please be noted the legs are non-adjustable so it is only suitable for open-bottom pallets.

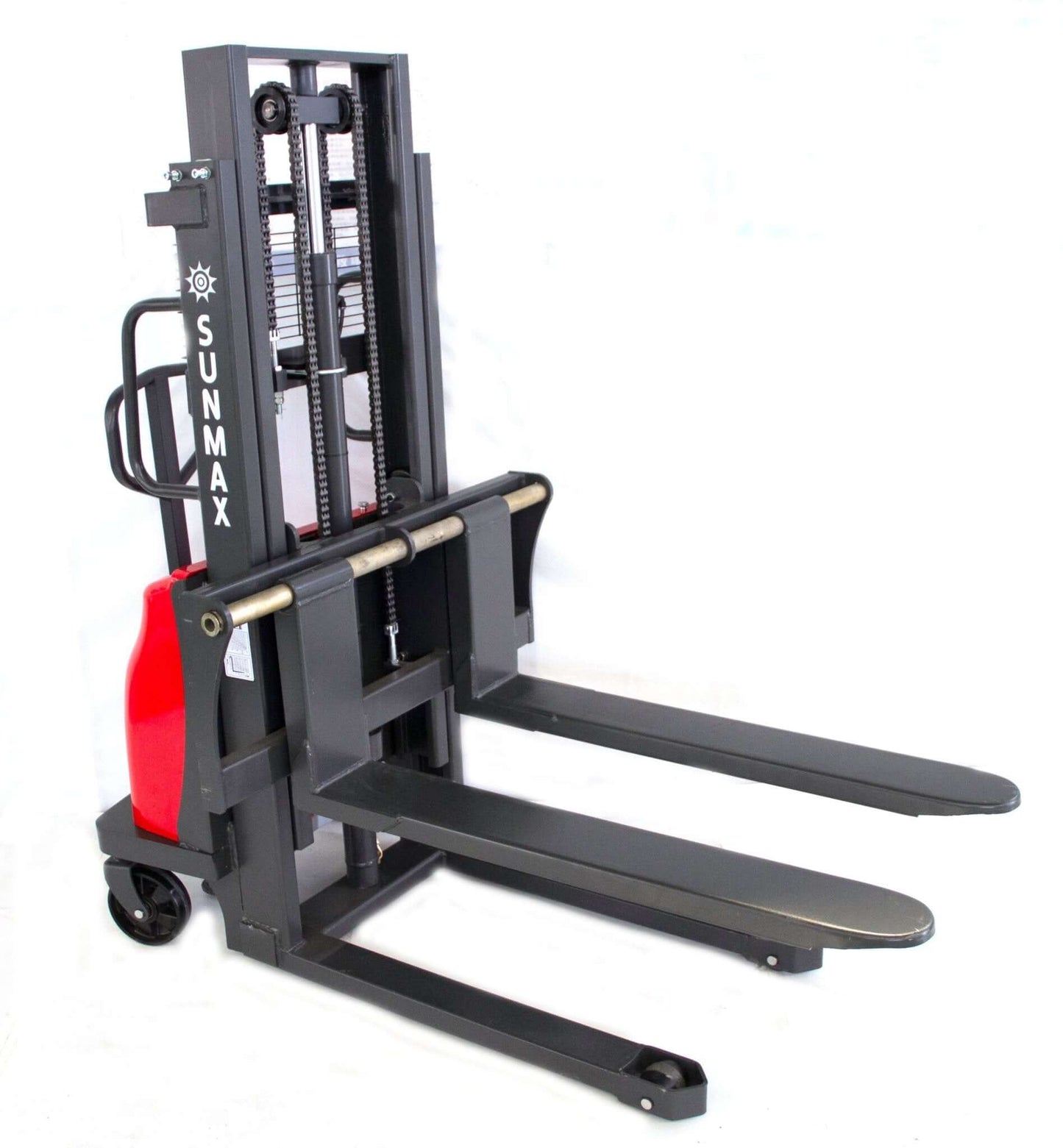

The SUNMAX 78" Electric Pallet Stacker is a powerful and practical solution for lifting and transporting palletized goods in warehouses, factories, and loading docks. With a 3,300 lbs load capacity and a 78" (2000 mm) lifting height, this model is ideal for medium-duty material handling tasks. Its compact frame and electromagnetic brake system ensure both maneuverability and safety in tight warehouse environments.
For greater versatility, this pallet stacker is available in 2 models:

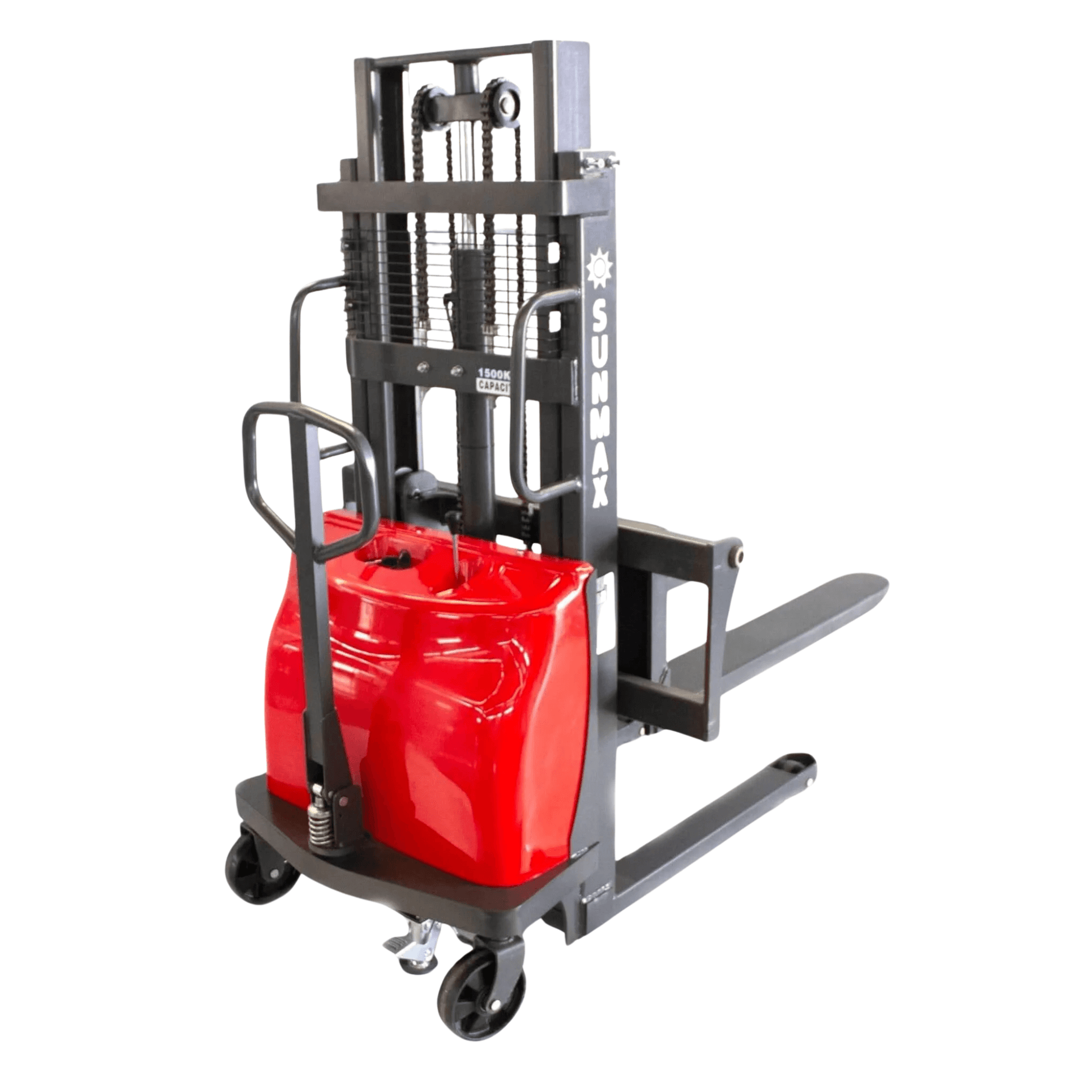

- Semi-Electric Model (PS3300SE-2M) – Electric lifting, manual movement, keeping operating costs low.

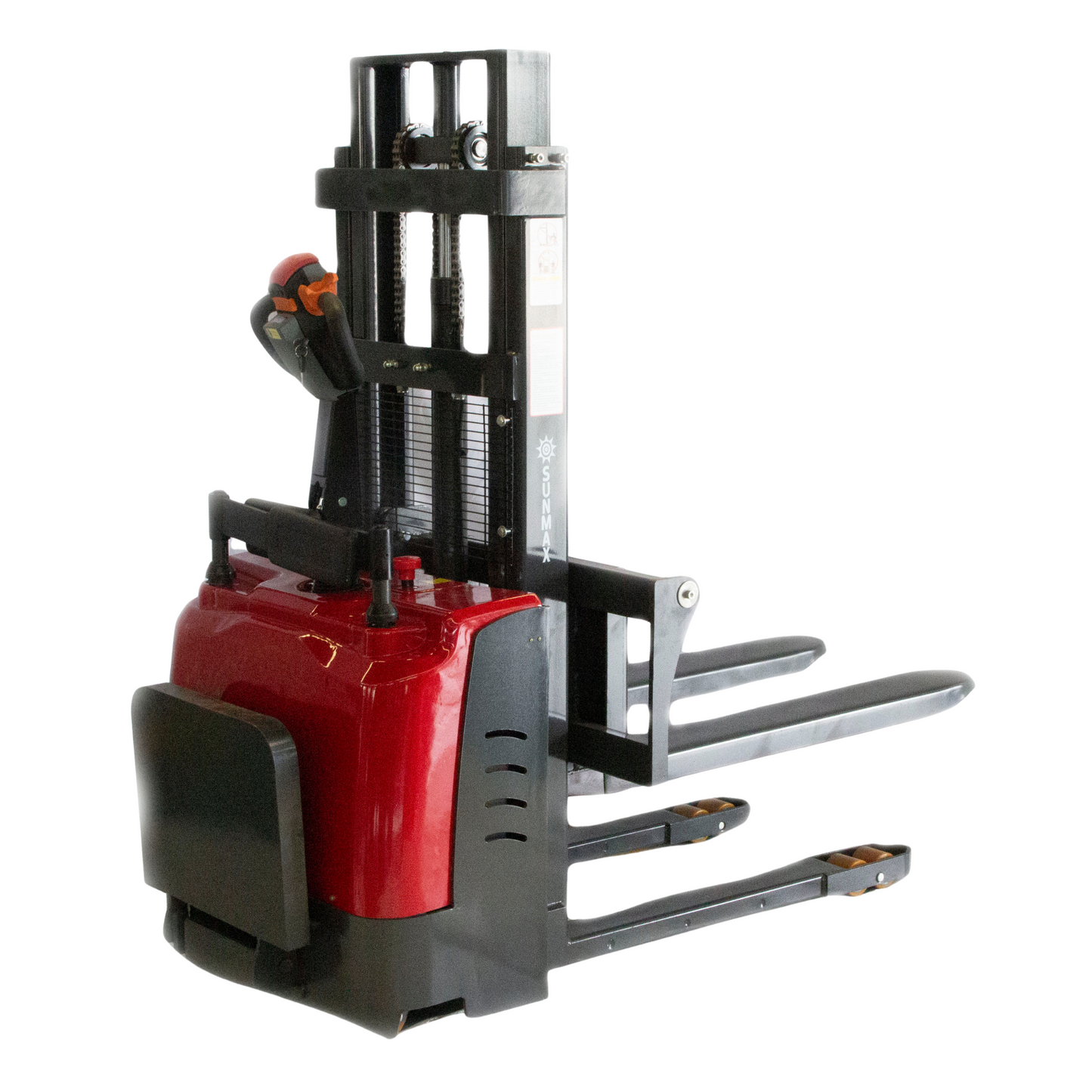

- Full-Electric Model (PS3300FE-2M) – Electric lifting and electric movement for complete operator ease.
Whether you prioritize cost-efficiency or convenience, SUNMAX gives you the flexibility to choose the stacker that fits your workflow.
Key Features
-

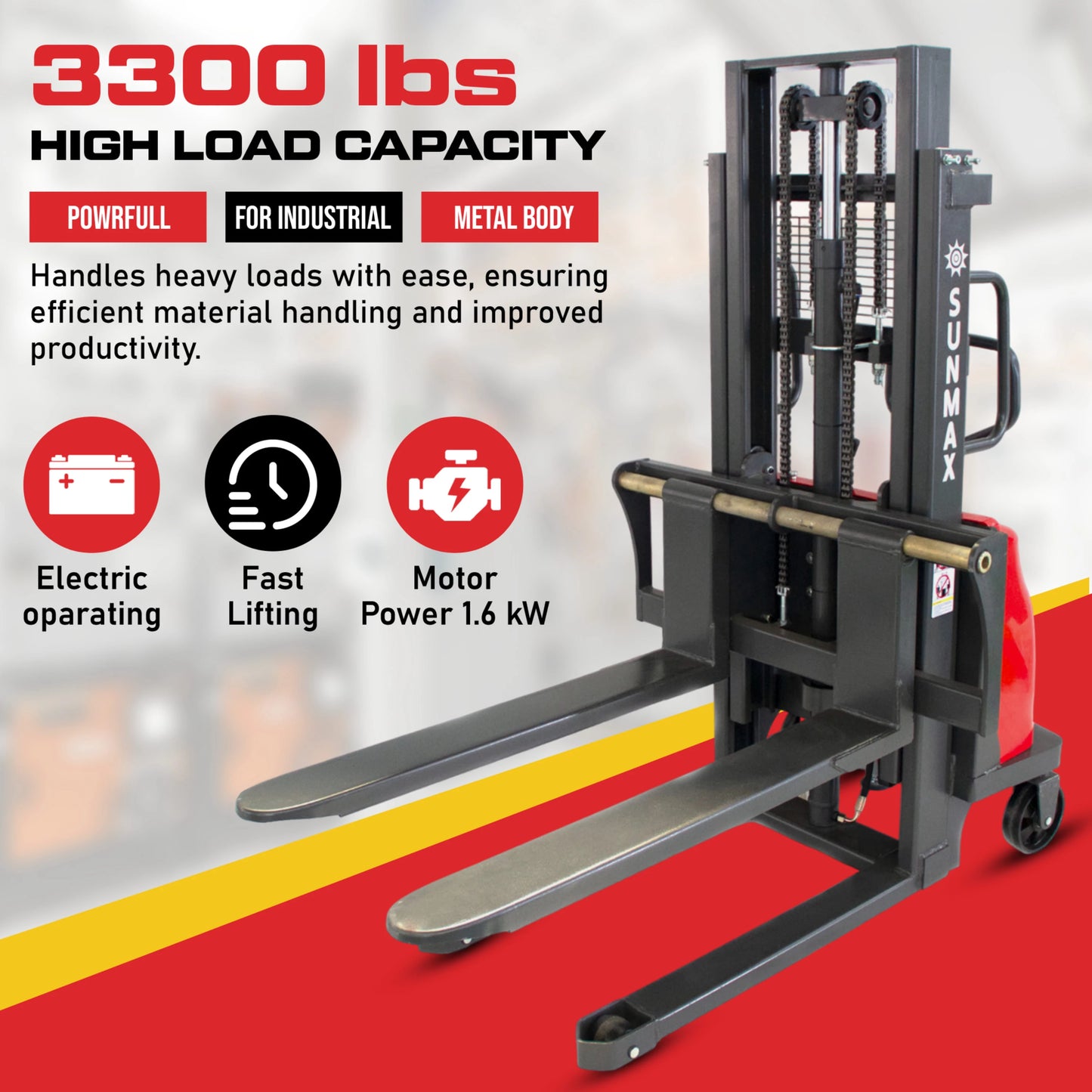

High Load Capacity:
- 3300 lbs (1500 kg) Capacity: Handles heavy loads with ease, ensuring efficient material handling and improved productivity.
-

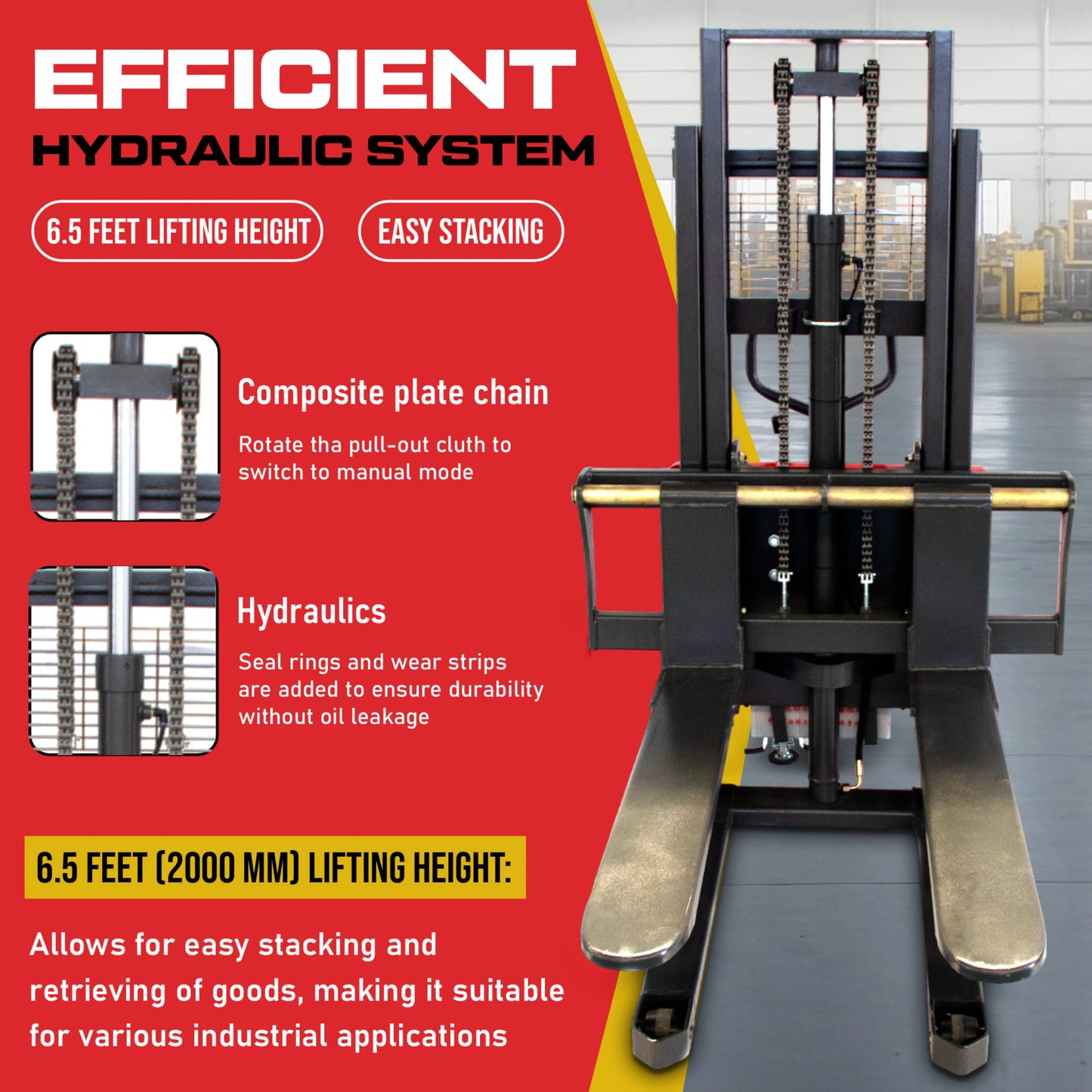

Efficient Hydraulic System:
- 78" (2000 mm) Lifting Height, 3.15" (80mm) Lowing Height, allows for easy stacking and retrieving of goods, making it suitable for various industrial applications.
-

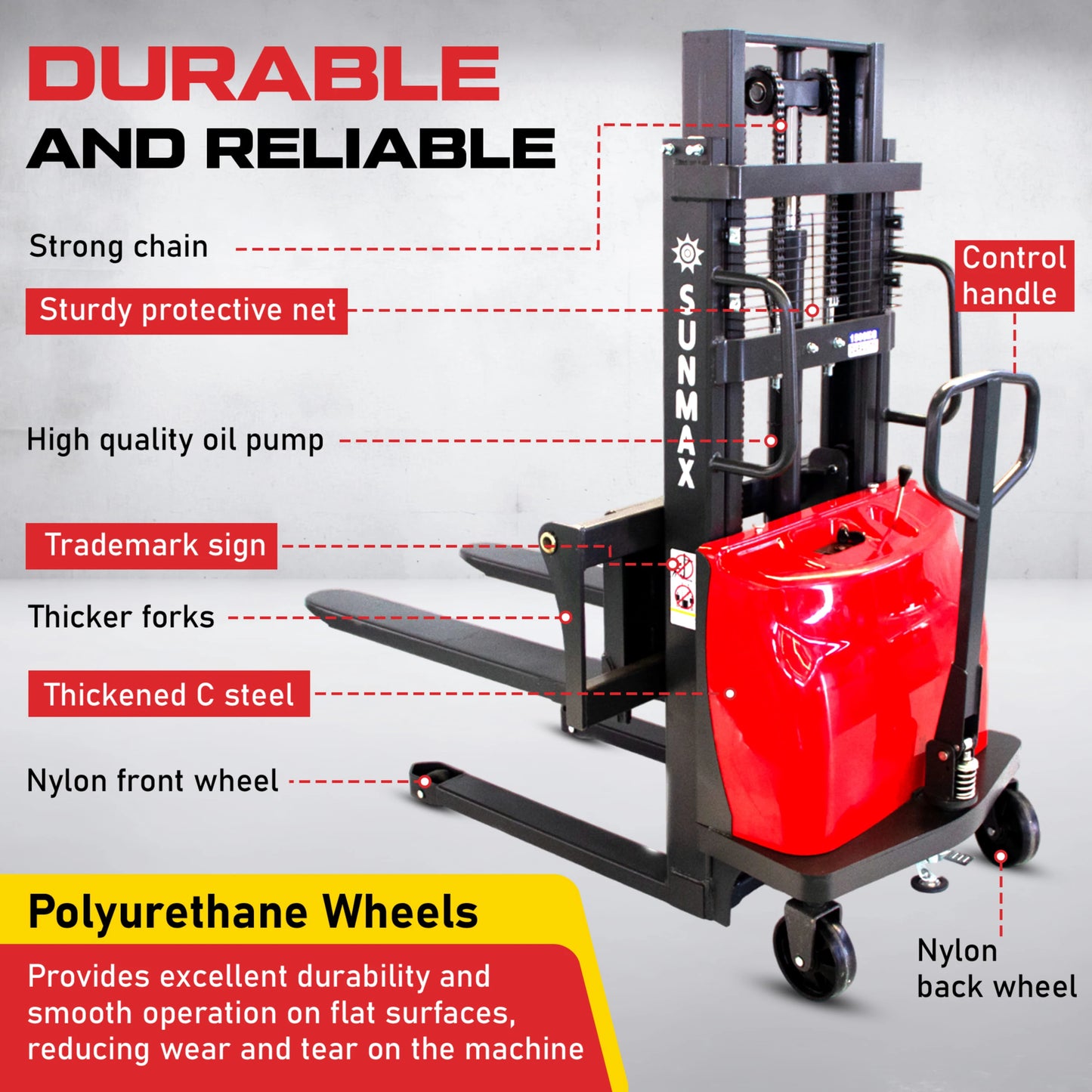

Durable and Reliable:
- Polyurethane Wheels: Provides excellent durability and smooth operation on flat surfaces, reducing wear and tear on the machine.
-

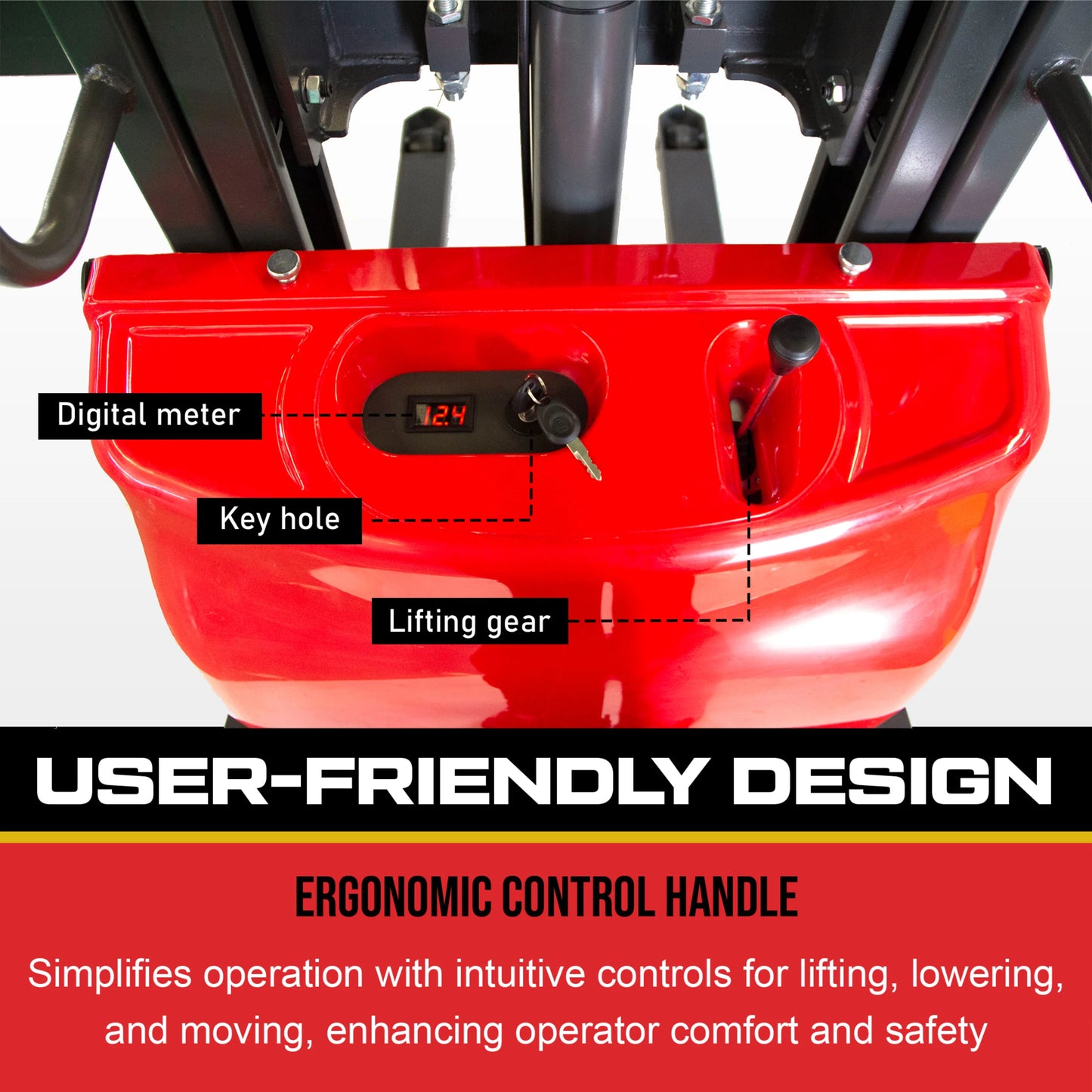

User-Friendly Design:
- Ergonomic Control Handle: Simplifies operation with intuitive controls for lifting, lowering, and moving, enhancing operator comfort and safety.
-

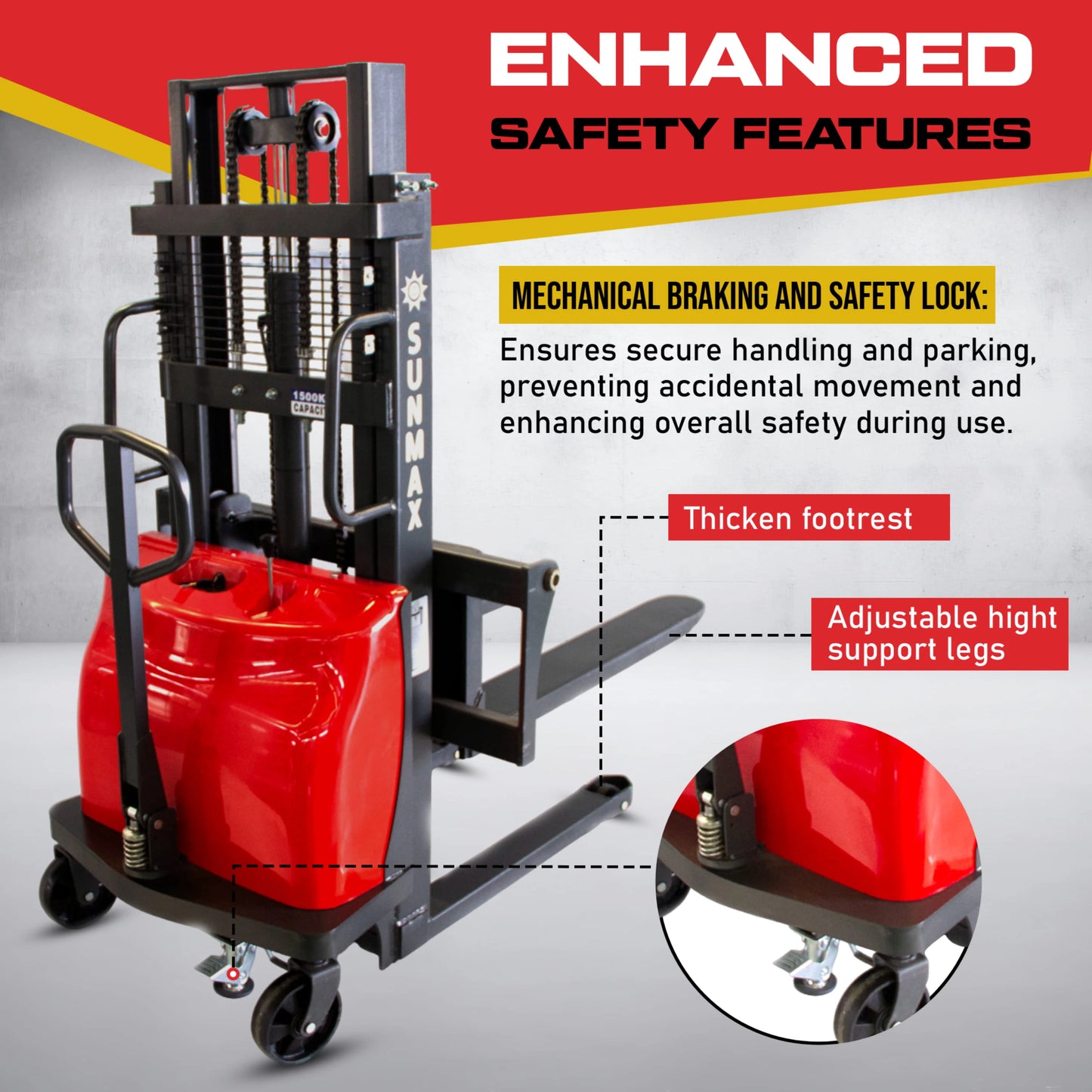

Enhanced Safety Features:
- Mechanical Braking and Safety Lock: Ensures secure handling and parking, preventing accidental movement and enhancing overall safety during use.
Technical Specifications
- Rated Load: 3300 lbs (1500 kg)

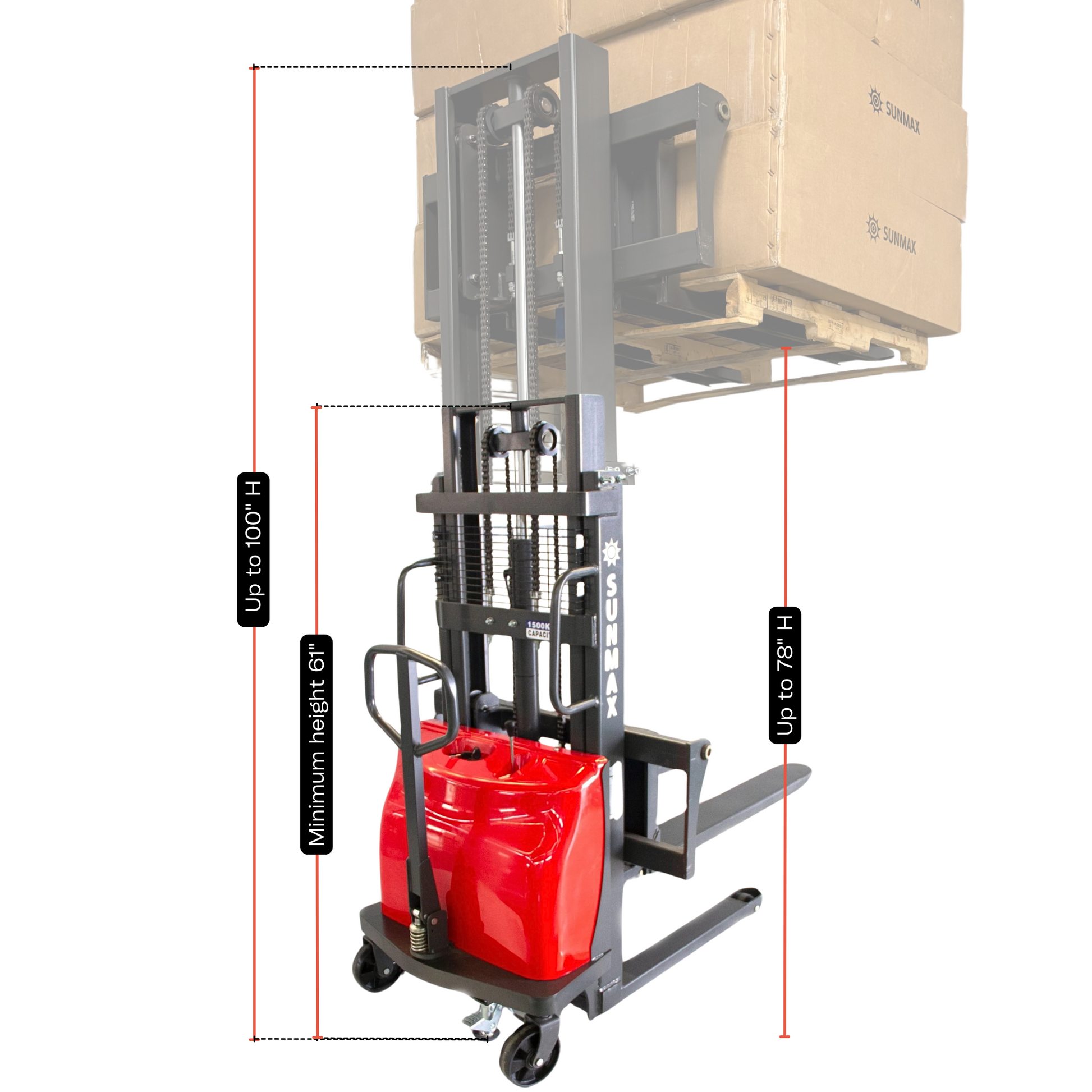

- Lifting Height: 78 inch (6.6 ft, 2 meter)
- Load Center Distance: 19.7 inches (500 mm)
- Ground Clearance: 1.18 inches (30 mm)

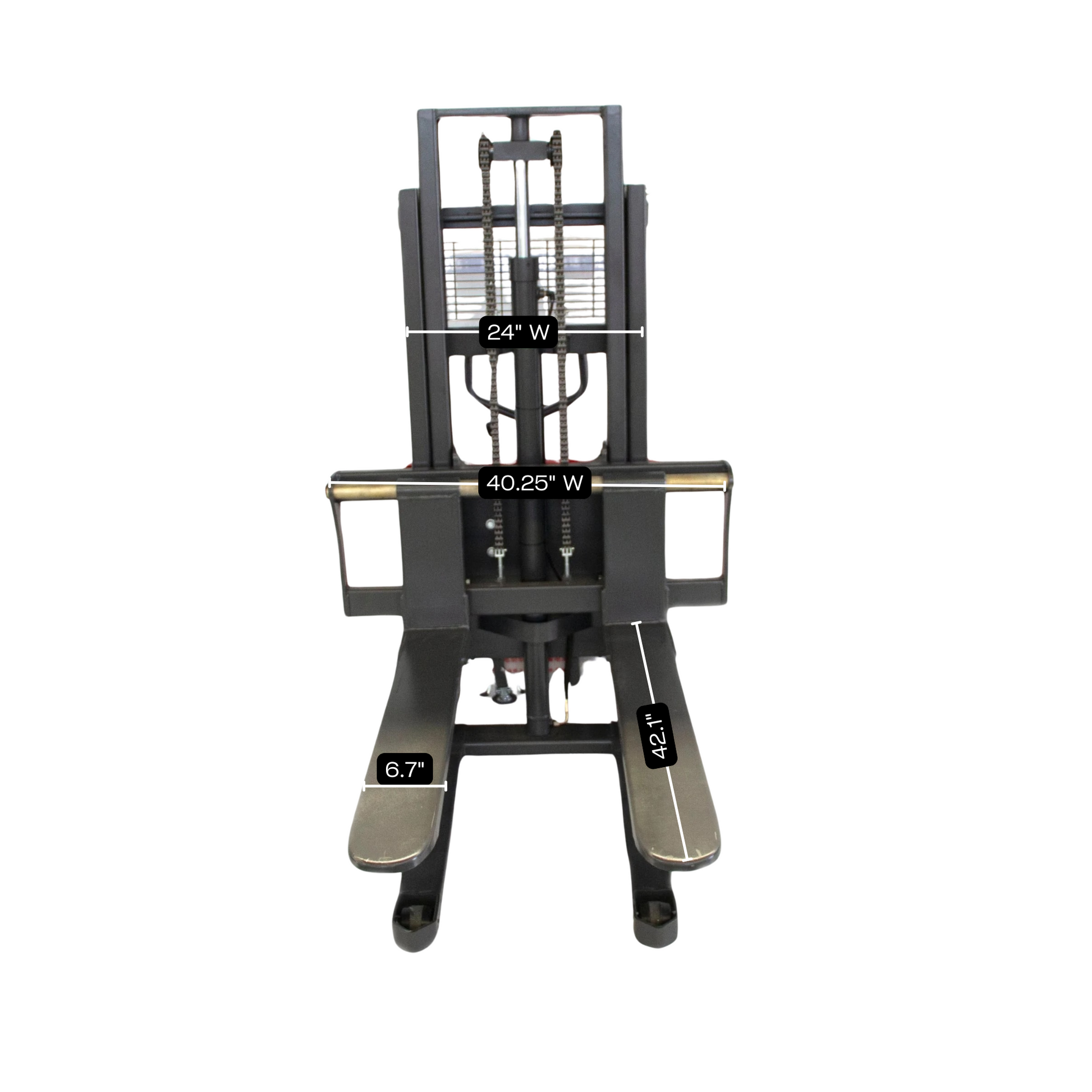

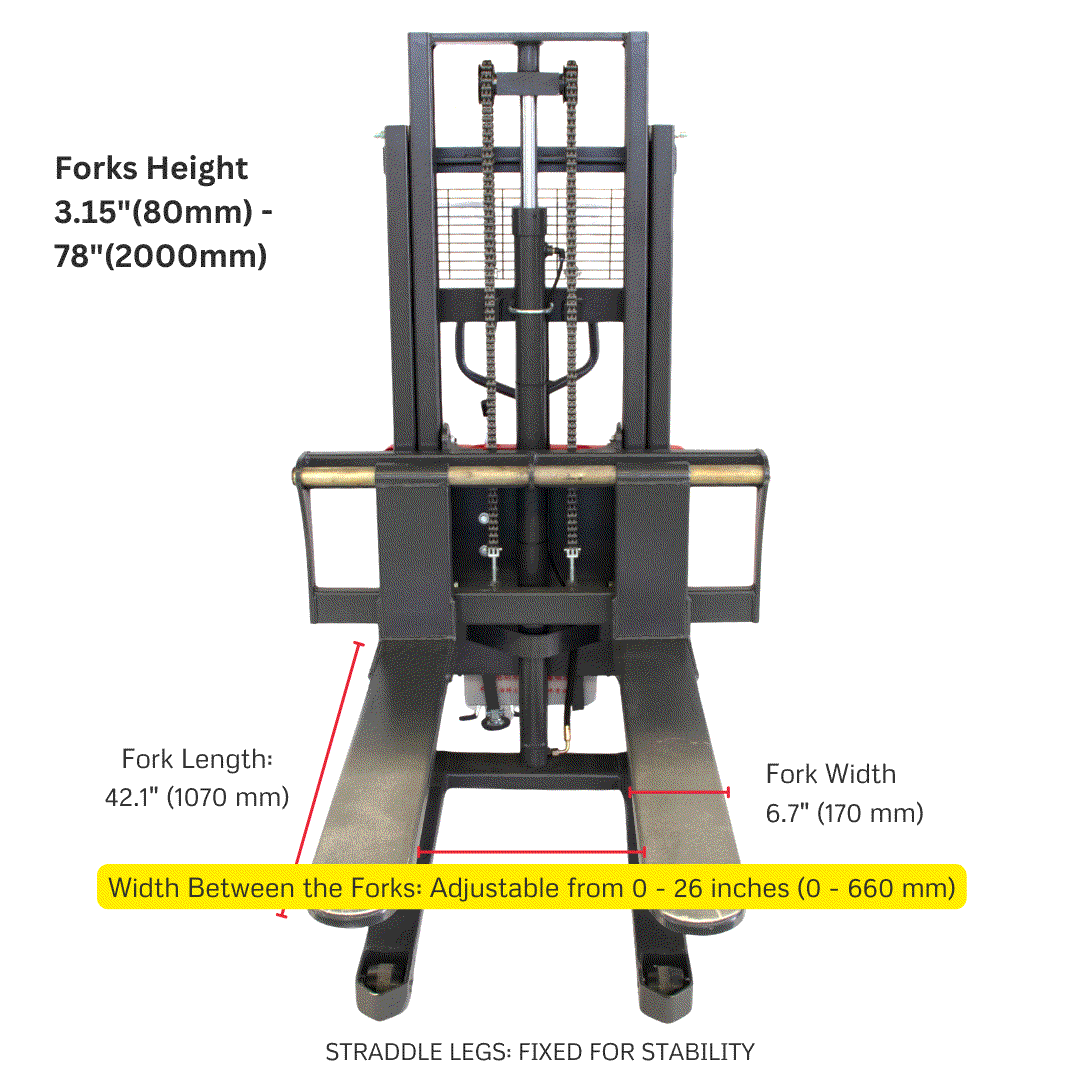

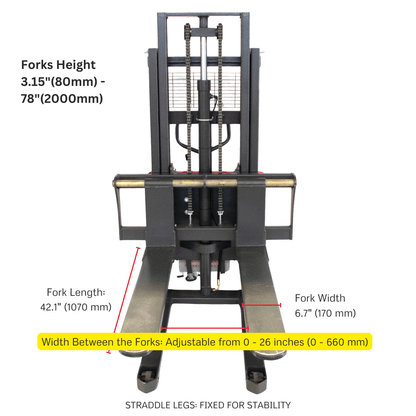

- Fork Size: 6.7 x 42.1 inches (170 x 1070 mm)/each

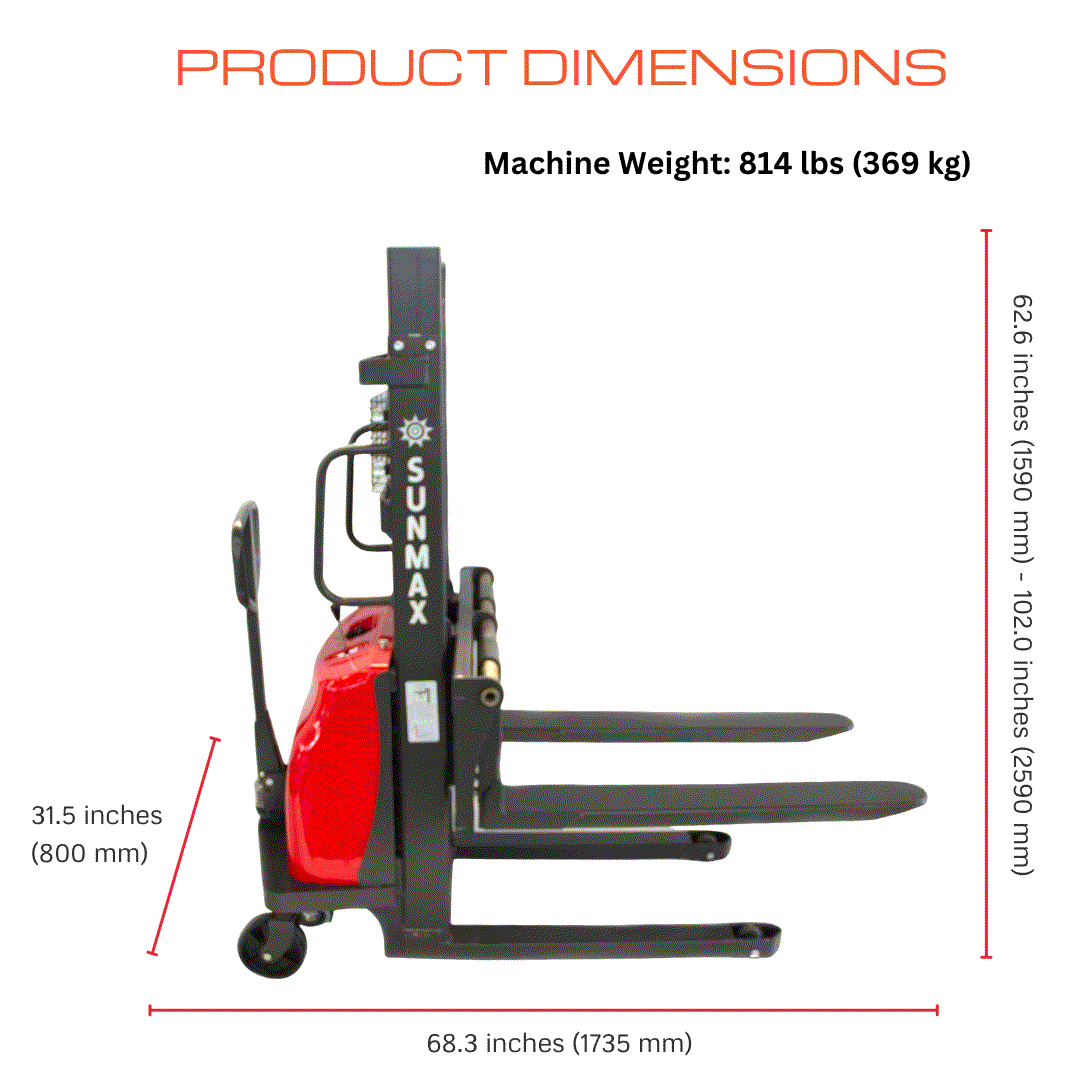

- Body Width: 31.5 inches (800 mm)
- Lowest Fork Height: 3.15 inches (80 mm)
- Turning Radius: 56.1 inches (1425 mm)
- Axle Load (full load, front/rear): 1347/2907 lbs (611/1319 kg)
- Axle Load (no load, front/rear): 717/231 lbs (325/105 kg)
- Lifting Speed (full/no load): 0.26/0.33 ft/s (0.08/0.1 m/s)
- Descending Speed (full/no load): 0.49/0.39 ft/s (0.15/0.12 m/s)
- Front Wheel Size: Φ7.1 x 2.0 inches (Φ180 x 50 mm)
- Leg Wheel Size: Φ3.1 x 2.8 inches (Φ80 x 70 mm)
- Additional Wheel Size: Φ5.9 x 2.4 inches (Φ150 x 60 mm)
- Service Braking: Mechanical Braking
- Motor Power: 1.6 kW
- Battery Voltage/Capacity: 12V/100Ah
- Charger: 12V/10A
- Charging Time: 8-10 hours
- Continuous Running Time:
- 3-5 hours (Full-electric model under normal operation);
- 6-8 hours (Semi-electric model Lifting-Only Run Time)
❗️Real-world factors that reduce runtime:
- Frequent lifting of heavy loads
- Rough floor surfaces
- Cold warehouse environments
- Poor battery maintenance
Share
















Usage Scenarios & Applications
-

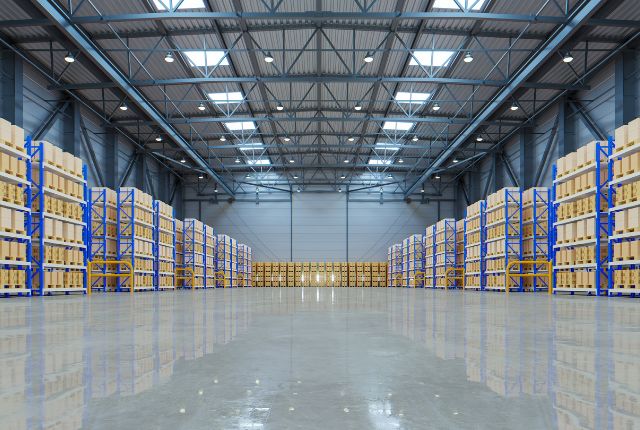

Warehouses
Transform your warehouse operations with the PS3300SE-2M semi-electric pallet stacker. Perfect for high-bay storage facilities, this electric pallet stacker reaches 78-inch lifting heights while maintaining exceptional stability. Whether you're managing inventory in narrow aisles or loading dock operations, our pallet stacker delivers the reliability warehouse managers demand. The compact design navigates tight spaces effortlessly, making it ideal for both small distribution centers and large-scale warehouse environments.
-
Manufacturing Facilities
Streamline your factory floor material handling with industrial-grade performance. The PS3300SE-2M excels in manufacturing environments where precision and durability matter. From moving raw materials to work-in-progress inventory, this semi-electric stacker handles 3,300 lbs capacity loads with ease. The electromagnetic brake system ensures safe operation around expensive machinery and personnel, while the polyurethane wheels protect sensitive factory floors from damage.
-
Distribution Centers
Accelerate your order fulfillment process with faster, more efficient pallet handling. Distribution centers rely on the PS3300SE-2M for consistent performance during peak shipping seasons. The 6-8 hour battery life keeps operations running smoothly across multiple shifts, while the ergonomic control handle reduces operator fatigue during extended use. Perfect for cross-docking operations, inventory staging, and truck loading activities.
Competitive Advantages
-
Superior Value Engineering
While competitors charge premium prices for basic functionality, the PS3300SE-2M delivers professional-grade performance at an accessible price point. Our semi-electric design offers the perfect balance between manual pallet jacks and expensive full-electric models, providing 80% of the functionality at 50% of the cost.
-
Extended Battery Performance
Unlike competitors with 3-4 hour battery life, our advanced 12V/100Ah system delivers 6-8 hours of continuous lifting operations. This means fewer charging interruptions and higher productivity compared to leading brands like Crown, Yale, or Raymond stackers in similar price ranges.
-
Robust Construction Standards
While many imported stackers use lightweight materials that fail under heavy use, the PS3300SE-2M features industrial-grade components designed for American warehouse conditions. Our polyurethane wheels outlast standard rubber alternatives by 300%, and the reinforced mast construction provides superior stability compared to economy models.
-
Fast Deployment & Support
Most competitors require weeks for delivery and complex dealer networks for support. Sunmax ships directly to your facility in 3-8 business days with complete setup instructions. Our 2-year parts warranty and direct customer support eliminate costly downtime that plagues users of other brands.
SPECIFICATIONS
-
- Rated Load: 3300 lbs (1500 kg)
- Lifting Height: 78 inch (6.6 ft, 2 meter)
- Load Center Distance: 19.7 inches (500 mm)
- Ground Clearance: 1.18 inches (30 mm)
- Fork Size: 6.7 x 42.1 inches (170 x 1070 mm)/each
- Body Width: 31.5 inches (800 mm)
- Lowest Fork Height: 3.15 inches (80 mm)
- Turning Radius: 56.1 inches (1425 mm)
- Axle Load (full load, front/rear): 1347/2907 lbs (611/1319 kg)
- Axle Load (no load, front/rear): 717/231 lbs (325/105 kg)
- Lifting Speed (full/no load): 0.26/0.33 ft/s (0.08/0.1 m/s)
-
- Descending Speed (full/no load): 0.49/0.39 ft/s (0.15/0.12 m/s)
- Front Wheel Size: Φ7.1 x 2.0 inches (Φ180 x 50 mm)
- Leg Wheel Size: Φ3.1 x 2.8 inches (Φ80 x 70 mm)
- Additional Wheel Size: Φ5.9 x 2.4 inches (Φ150 x 60 mm)
- Service Braking: Mechanical Braking
- Motor Power: 1.6 kW
- Battery Voltage/Capacity: 12V/100Ah
- Charger: 12V/10A
- Charging Time: 8-10 hours
- Continuous Running Time:
- 3-5 hours (Full-electric model under normal operation);
- 6-8 hours (Semi-electric model Lifting-Only Run Time)

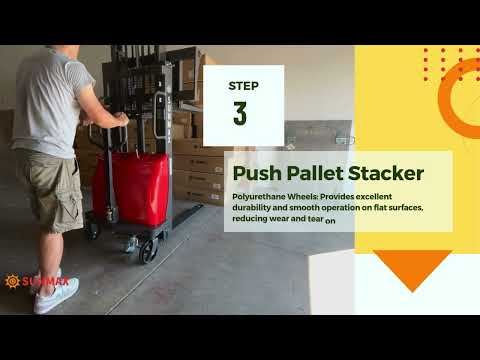

HOW TO USE IT
Customer Pain Point Solutions
Collapsible content
Pain Point: High Labor Costs & Worker Fatigue
Solution: The PS3300SE-2M reduces physical strain by eliminating manual lifting and pumping. Operators can move 3,300 lb loads effortlessly, reducing workplace injuries and workers' compensation claims. The ergonomic handle design minimizes back strain during extended shifts.
Pain Point: Expensive Equipment Maintenance
Solution: Our simplified semi-electric design has fewer moving parts than full-electric alternatives, resulting in 40% lower maintenance costs. The 2-year parts warranty covers non-wearable components, protecting your investment from unexpected repair expenses.
Pain Point: Space Constraints in Tight Aisles
Solution: With a compact 31.5-inch body width and 56.1-inch turning radius, the PS3300SE-2M navigates standard pallet rack aisles where larger forklifts cannot operate. This versatility maximizes your existing storage space without requiring facility modifications.
Pain Point: Inconsistent Load Handling
Solution: The precision hydraulic system provides smooth, controlled lifting and lowering at consistent speeds regardless of load weight. Mechanical braking and safety locks prevent load shifting during transport, protecting both products and personnel.
Pain Point: Long Equipment ROI Periods
Solution: The PS3300SE-2M typically pays for itself within 6-12 months through improved efficiency and reduced labor costs. Compare this to $15,000+ electric forklifts that require 2-3 years to achieve positive ROI.
Industry Application Case Studies
E-commerce Fulfillment Center - Texas
Challenge: A growing online retailer needed to triple their daily order processing capacity without expanding their 50,000 sq ft facility.
Solution: Deployed 12 PS3300SE-2M stackers to replace manual pallet jacks across pick, pack, and ship operations.
Results:
- 35% increase in orders processed per shift
- 60% reduction in worker fatigue-related incidents
- $180,000 annual labor cost savings
- Full ROI achieved in 8 months
Food Distribution Warehouse - California
Challenge: Cold storage environment (-10°F) required reliable material handling equipment that could operate in extreme conditions while maintaining food safety standards.
Solution: Modified PS3300SE-2M units with cold-weather battery systems for frozen food handling operations.
Results:
- 99.2% uptime in sub-zero conditions
- 25% faster pallet rotation reducing product spoilage
- HACCP compliance maintained throughout operations
- Zero contamination incidents during 18-month deployment
Automotive Parts Manufacturing - Michigan
Challenge: Assembly line required precise positioning of heavy component pallets (2,800-3,200 lbs) in confined spaces between production equipment.
Solution: Integrated PS3300SE-2M stackers with custom fork extensions for oversized automotive components.
Results:
- 42% reduction in material handling time
- Zero workplace injuries related to manual lifting
- Improved production line efficiency by 18%
- Annual maintenance costs 65% lower than previous electric forklifts
Pharmaceutical Distribution - New Jersey
Challenge: FDA-regulated facility needed validated material handling equipment for controlled substance storage areas with strict tracking requirements.
Solution: Implemented PS3300SE-2M stackers with integrated RFID systems for automated inventory tracking.
Results:
- 100% inventory accuracy maintained
- 30% faster order fulfillment for time-sensitive medications
- Full audit trail compliance for regulatory inspections
- Reduced security breach incidents by eliminating unauthorized access areas
Ready to solve your material handling challenges? Contact our warehouse equipment specialists for a free consultation and see why leading companies choose Sunmax pallet stackers for their operations.
